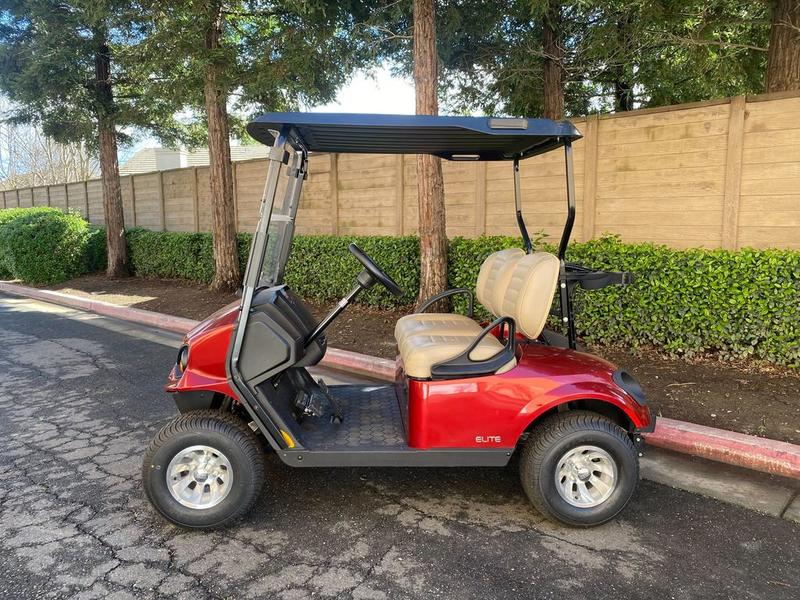

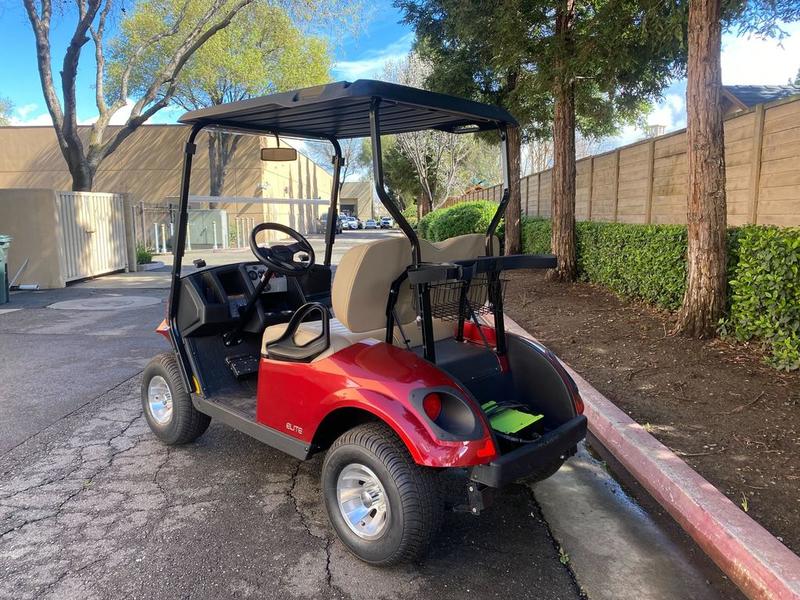

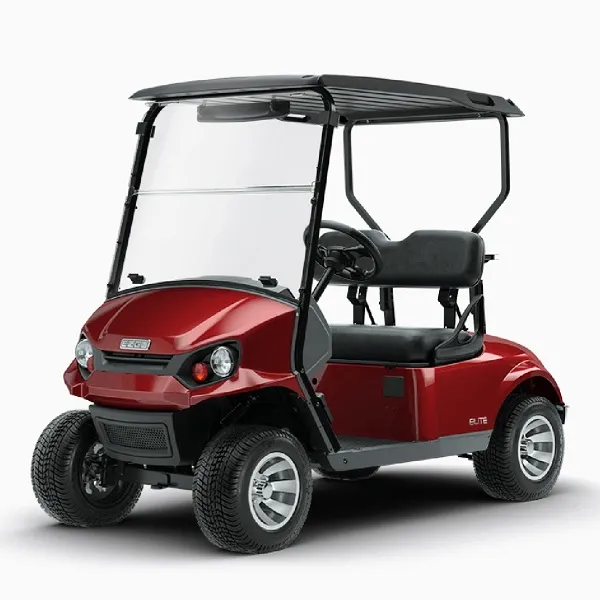

Specifications – 2023 E-Z-GO Express S2® ELiTE Lithium (Inferno Red)

Powertrain & Performance

• Motor Type: AC Induction

• Motor Power: 22.4 HP (16.7 kW)

• Battery Type: 56.7V Li-Ion Composite Module (Samsung SDI Technology)

• Power System Voltage: 39.2V – 56.7V

• Top Speed: Up to 19 mph (31 km/h)

• Motor Controller: 350W Domestic Charger with 3m Charging Cord

• Drive System: Motor Shaft Direct Drive

Drivetrain & Transmission

• Transmission: Differential with Helical Gears

• Gear Selector: Dash Mounted FNR / Key Switch

• Axle Ratio: 16.99:1 (Forward)

Chassis & Suspension

• Frame: Welded Steel with DuraShield Powder Coat

• Body Finish: Injection Molded TPO

• Front & Rear Suspension: Leaf Springs with Hydraulic Shock Absorbers

• Steering: Self-Compensating Rack and Pinion

• Brake System: Dual Rear Wheel Mechanical Self-Adjusting Drum

• Parking Brake: Self-Compensating, Single Point Engagement

Dimensions

• Overall Length: 97 in (246 cm)

• Overall Width: 49.5 in (124 cm)

• Height (w/o Roof): 51 in (129 cm)

• Height (with Roof): 74.4 in (189 cm)

• Wheelbase: 67 in (170 cm)

• Ground Clearance: 5.25 in (13.3 cm)

• Turning Radius: 11 ft (3.4 m)

Electrical System

• Primary Voltage: 48V

• Auxiliary Voltage: 12V

• Gauge Display: Speed, Battery Level, and Hour Meter

Capacities & Weight

• Seating Capacity: 2-Passenger

• Cargo Capacity: 500 lbs (227 kg)

• Dry Weight (No Batteries): 714 lbs (324 kg)

• Curb Weight: 1206 lbs (547 kg)

Colors & Seats

• Body Color: Inferno Red

• Available Seat Options:

  • Black

  • Grey on Black Stitched

  • White on Beige Stitched

  • Premium Seats: Black, Grey, Mushroom
